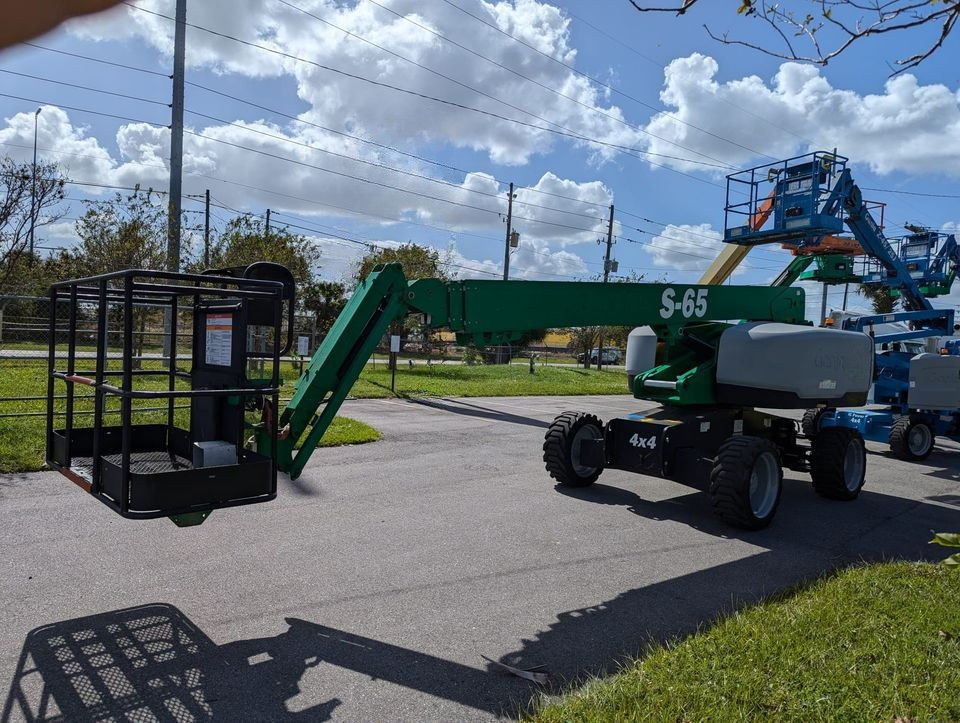

2016 Genie S-65 Boom lift
Maximum Working Height: 71 ft (21.8 m)
Maximum Platform Height: 65 ft (19.8 m)
Maximum Horizontal Reach: 54 ft 2 in to 56 ft 2 in (16.5 m to 17.1 m)
Below Ground Reach: Approximately 8 ft 8 in (2.65 m)
Platform Capacity:
Unrestricted: Typically 500 lbs (227 kg).
Restricted (XC models): Some S-65 XC (Xtra Capacity) models from this era might offer dual capacities, such as 660 lbs (300 kg) unrestricted and 1,000 lbs (454 kg) restricted. It's important to verify if it's an XC model.
Platform Occupancy: Typically 2 persons
Jib: 5 ft (1.52 m) articulating jib with approximately 135-160° working range (vertical rotation).
Turntable Rotation: 360° continuous
Drive Speed (Stowed): 3 mph (4.8 km/h)
Drive Speed (Raised/Extended): Approximately 0.68 mph (1.1 km/h)
Gradeability (Stowed): 45% (for 4WD models)
Turning Radius (Outside): Approximately 18 ft (5.5 m)
Turning Radius (Inside): Approximately 7 ft 9 in (2.36 m)
Engine:

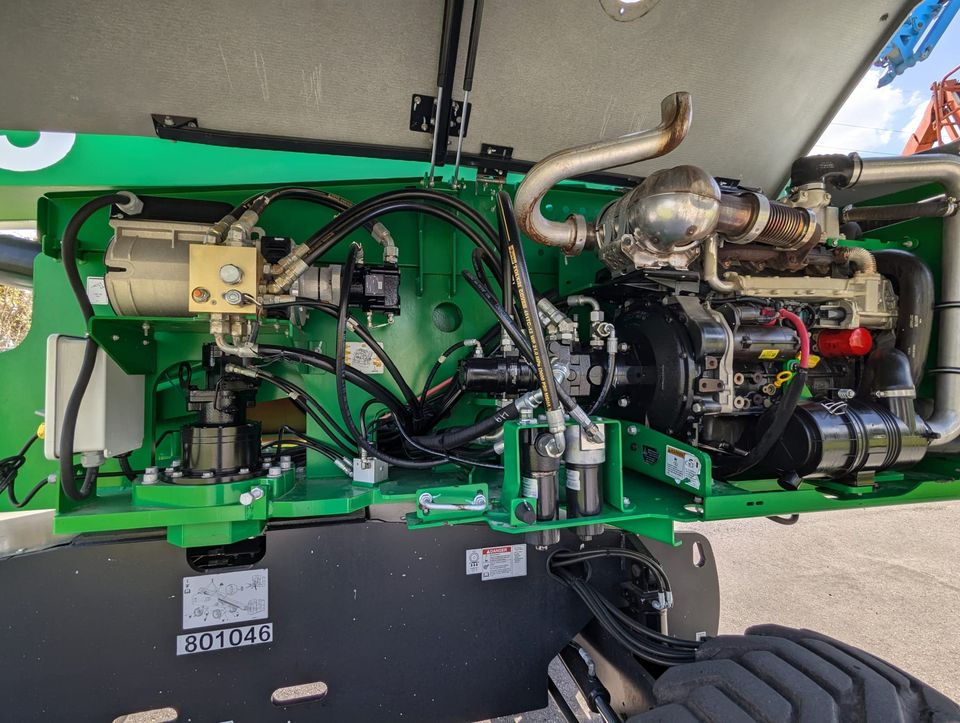

Engine: Deutz diesel 48 hp)
